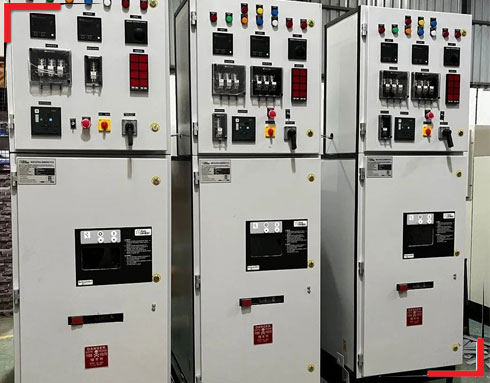

VCB & ELECTRICAL CONTROL PANEL

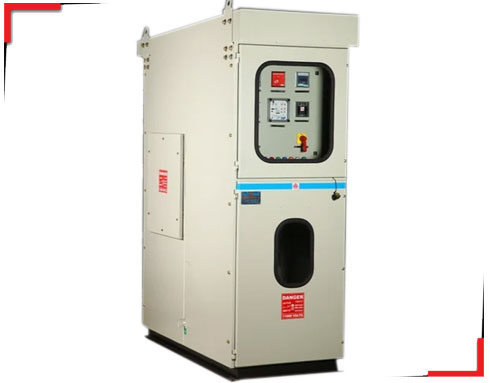

Technical Specification – Vacuum Circuit Breaker (VCB)
- Product Name: Vacuum Circuit Breaker (VCB)
- Type: Indoor / Outdoor (as required)
- Rated Voltage: 11 kV / 22 kV / 33 kV
- Rated Current: 630 A / 800 A / 1250 A / 1600 A / 2000 A
- Rated Frequency: 50 Hz
- Rated Short Circuit Breaking Capacity: 16 kA / 25 kA / 31.5 kA
- Making Capacity: 2.5 × Breaking Capacity
- Insulation Medium: Vacuum Interrupter
- Operating Mechanism: Spring Charged / Motor Operated
- Operating Voltage: 110 V / 220 V AC or DC
- Tripping System: Shunt Trip / Under Voltage Release (UVR)
- Control Circuit: Electrically and Mechanically Interlocked
- Mechanical Endurance: ≥ 10,000 Operations
- Electrical Endurance: ≥ 50 Operations at Rated Fault Current
- Protection Class: IP4X / IP55 (as required)
- Mounting Type: Fixed / Draw-Out Type
- Standards: IS 13118 / IEC 62271
- Applications: HT Switchgear Panels, Substations, Industrial Power Distribution

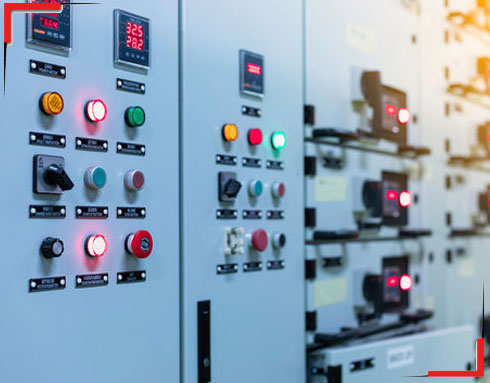

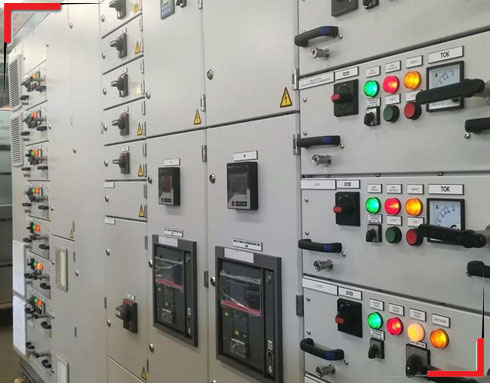

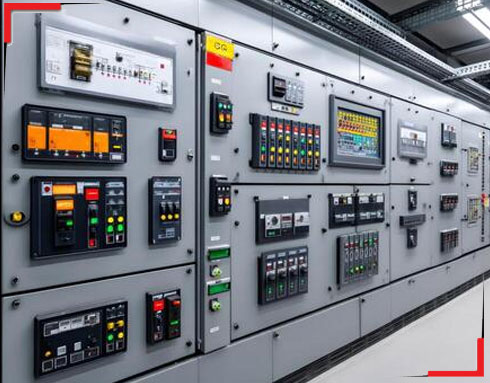

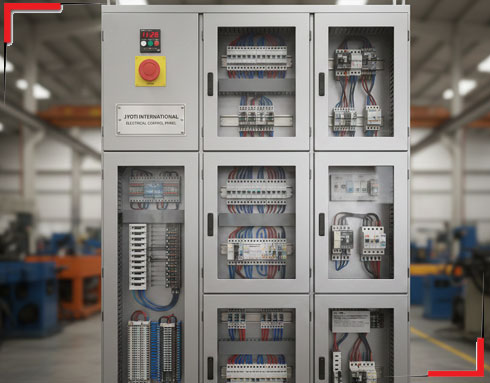

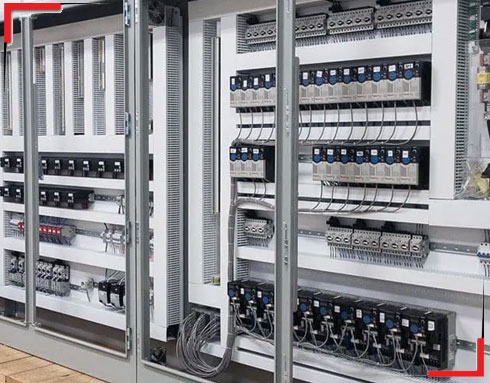

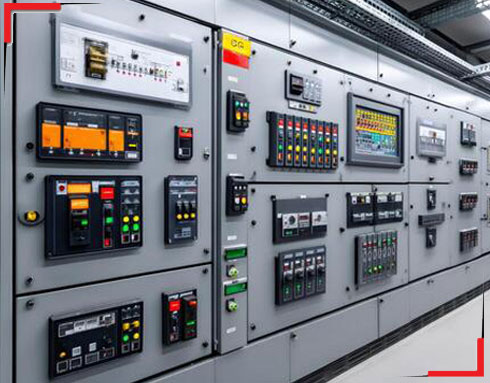

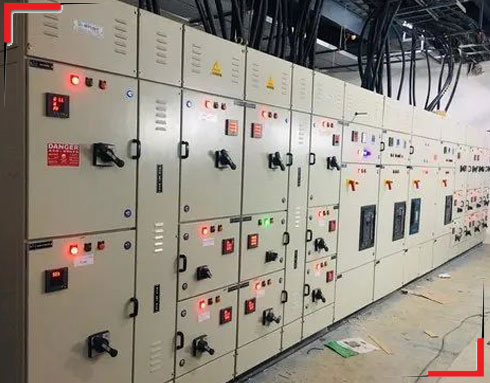

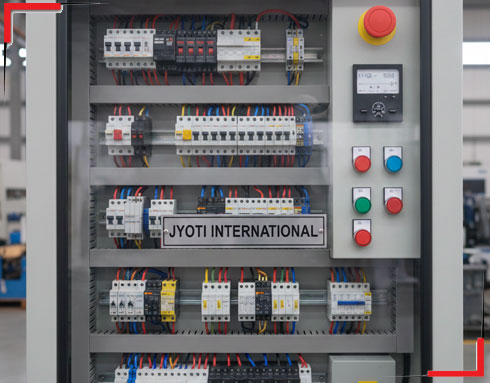

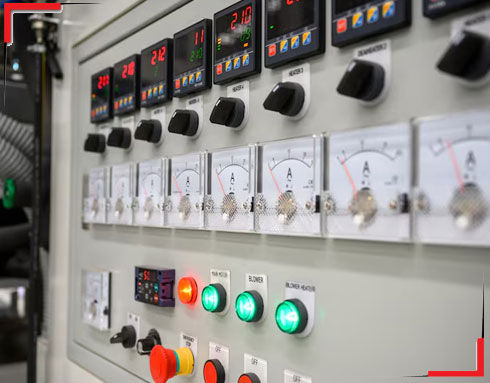

Technical Specification – Electrical Control Panel
- Product Name: Electrical Control Panel
- Panel Type: PCC / MCC / APFC / PLC Control Panel
- Operating Voltage: 415 V ±10%
- Rated Frequency: 50 Hz
- Control Voltage: 110 V / 230 V AC / DC
- Busbar Material: Electrolytic Grade Copper / Aluminium
- Busbar Rating: As per load requirement
- Short Circuit Withstand: Up to 50 kA for 1 Second
- Panel Construction: CRCA Sheet Steel
- Sheet Thickness: 1.6 mm / 2.0 mm (as per design)
- Protection Degree: IP42 / IP54 / IP65
- Panel Type: Floor Mounted / Wall Mounted
- Cable Entry: Top / Bottom
- Cooling: Natural / Forced Ventilation
- Painting: Powder Coated (RAL 7035 or as specified)
- Indications: LED Indication for R-Y-B Phase
- Meters: Voltmeter, Ammeter, Energy Meter (Digital/Analog)
- Protection Devices: MCB, MCCB, ACB, VCB, Relays
- Control Components: Contactors, Relays, Timers, Push Buttons
- Wiring: FRLS Copper Control Wiring with Ferruling
- Earthing: Dual Earthing Provided
- Standards: IS 8623 / IEC 61439
- Applications: Industrial Automation, Power Distribution, Process Control
